Dati tecnici

Alimentazione elettrica:	230 V AC, 50 Hz
Potenza totale installata:	3400,00 W
Potenza in uscita:	900 W RMS (8 Ohm)
Misure:	Larghezza: 48,3 cm Profondità: 54 cm Altezza: 13,35 cm
Peso:	31,10 kg
Power output sine:

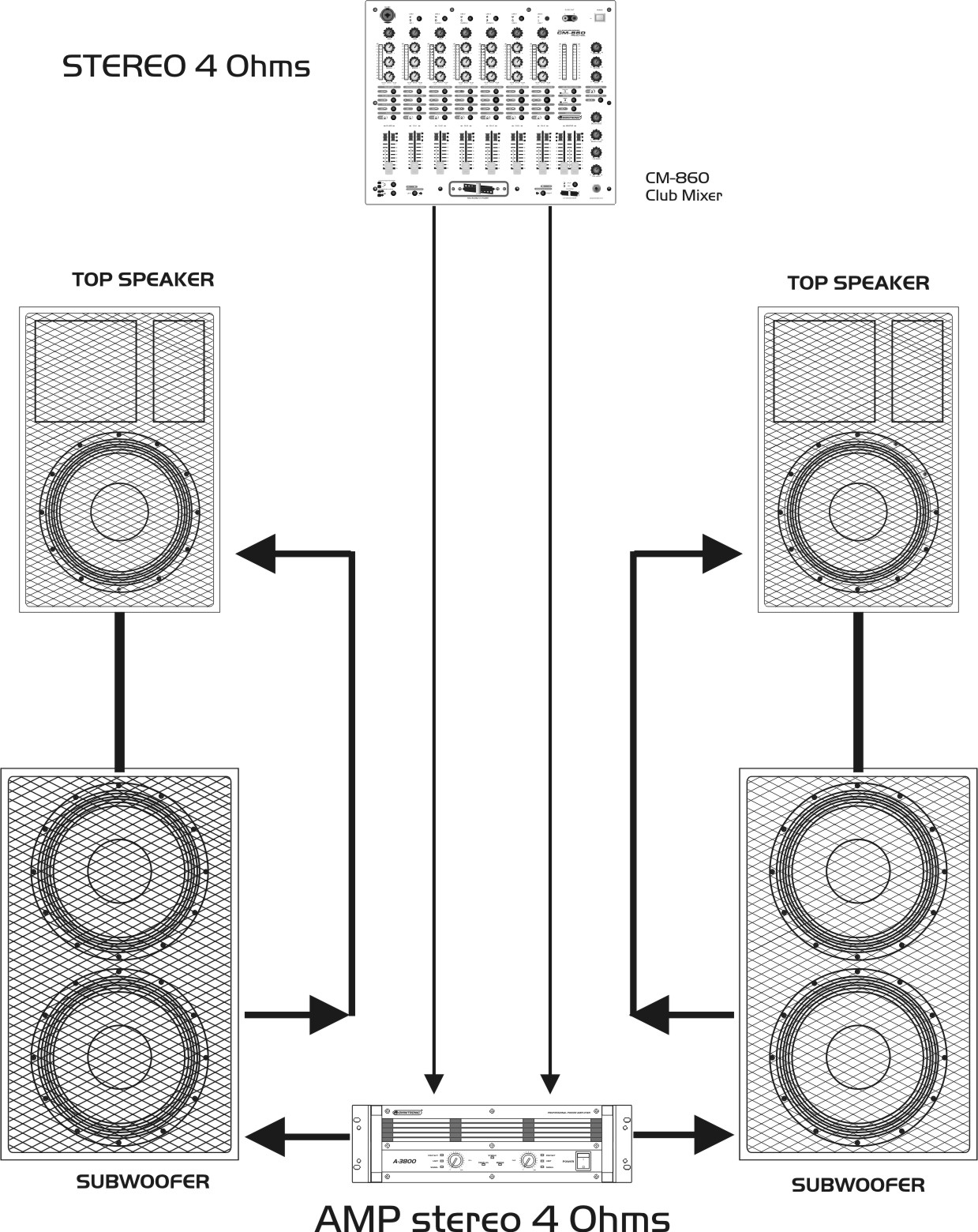

Stereo 4 ohms	2 x 1350 W

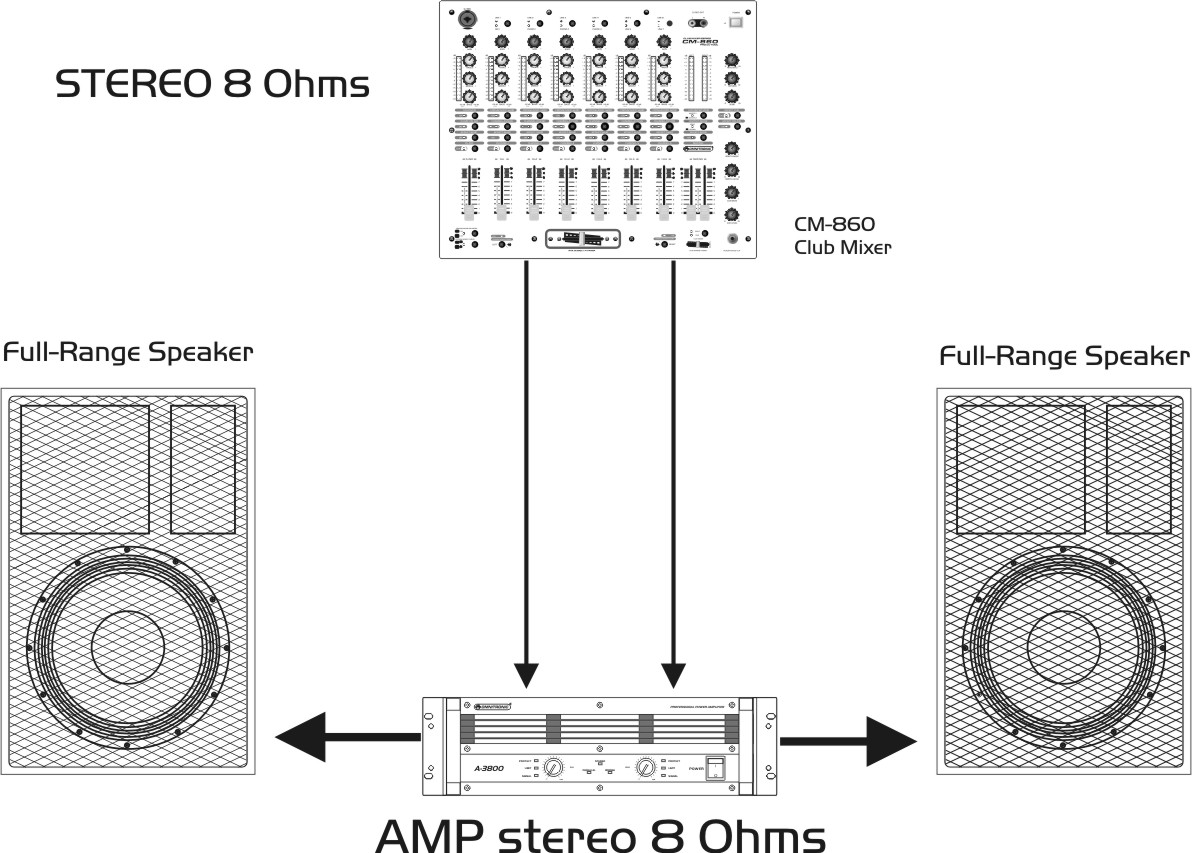

Stereo 8 ohms	2 x 900 W
8 ohms bridged	1 x 2700 W
Frequency range:	20-20000 Hz, ±0.5 dB
Damping factor:	>400
Distortion factor:	0.01 %
Signal-to-noise ratio:	>100 dB
Channel seperation (at 1 kHz):	>70 dB
Min. input sensitivity:	0.77 V/26 dB/1.44 V
Input impedance:	20 kohms (balanced)
Slew rate:	60 V/µsec

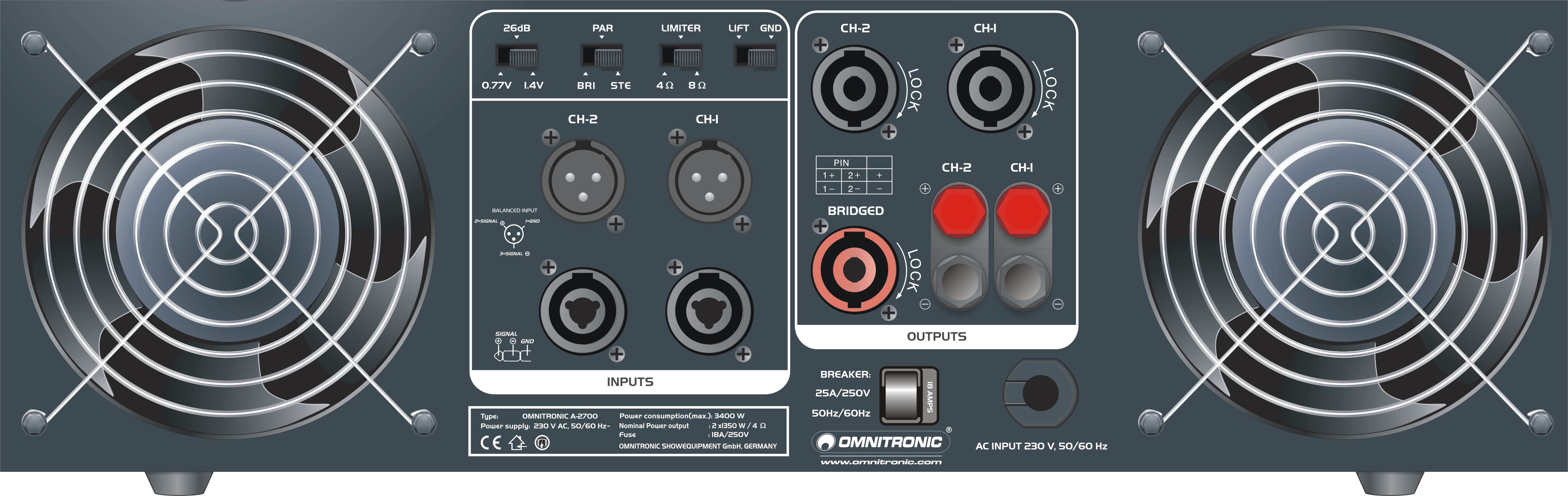

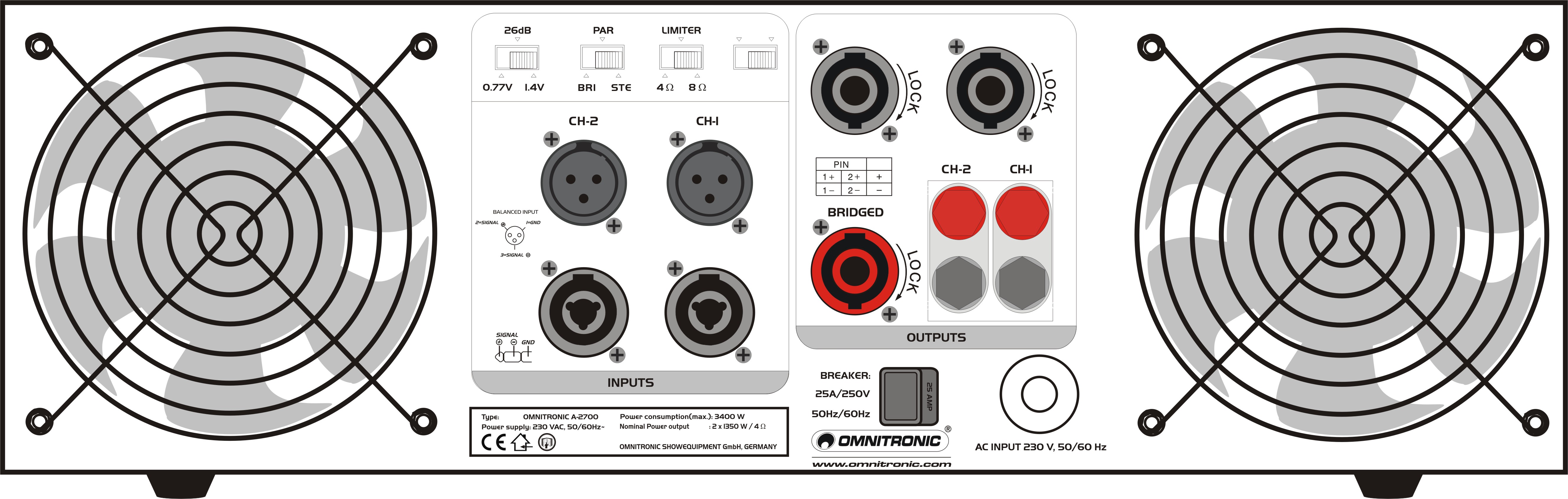

Input connectors:	2 x XLR/6.3 mm jack mounting socket
Output connectors:	2 x Speaker (stereo), 1 x Speaker (bridge), 2 x screw connectors

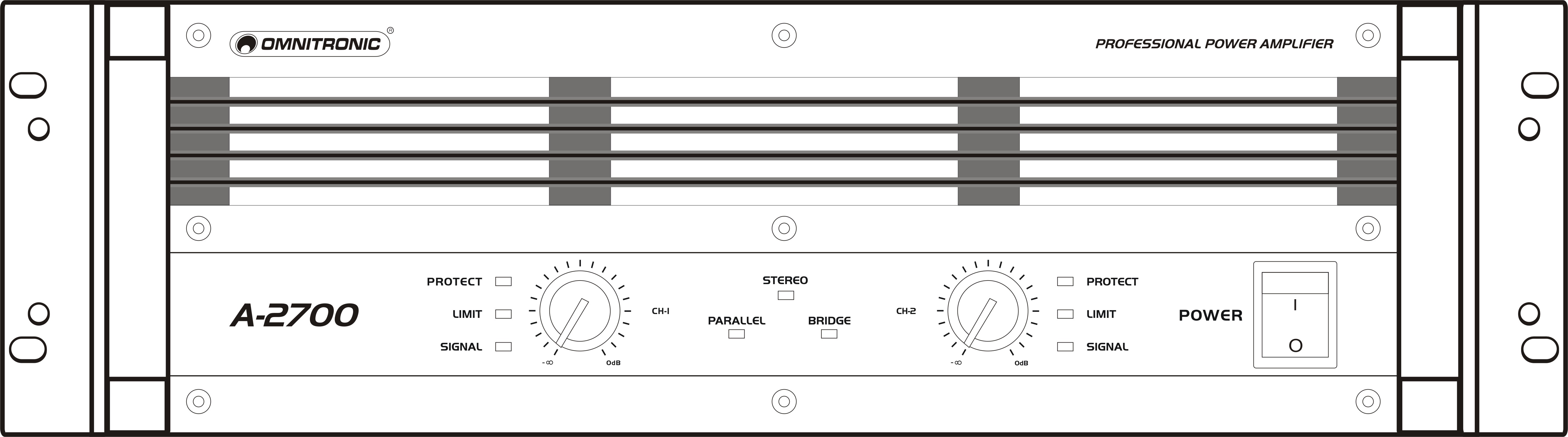

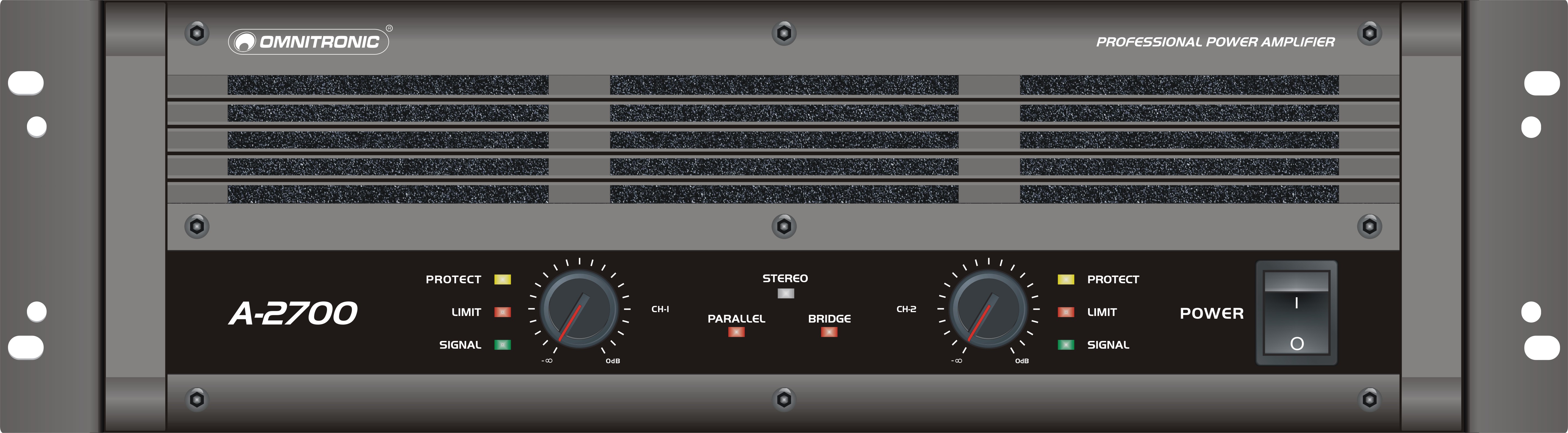

Control elements:	Power switch, input attenuators (one per channel), Mode switch - Stereo/Parallel/Bridged, Ground Lift, Input-Level-Select (0.77 V/26 dB/1.44 V), limiter
LED indicators:
Global:	Stereo, Parallel, Bridge
Per channel:	Signal, Clip/Limit, Protect
Protection circuits:	Short-circuit, overvoltage, DC, thermal, softstart, limiter
Construction:	Steel chassis, aluminum front panel
Power/weight-relation:	87 W/ kg

Unità di imballaggio

QPC	EAN	Peso	Dimensioni
1	4026397182415	33,60 kg	60cm x 58cm x 19cm
